Gate Valve

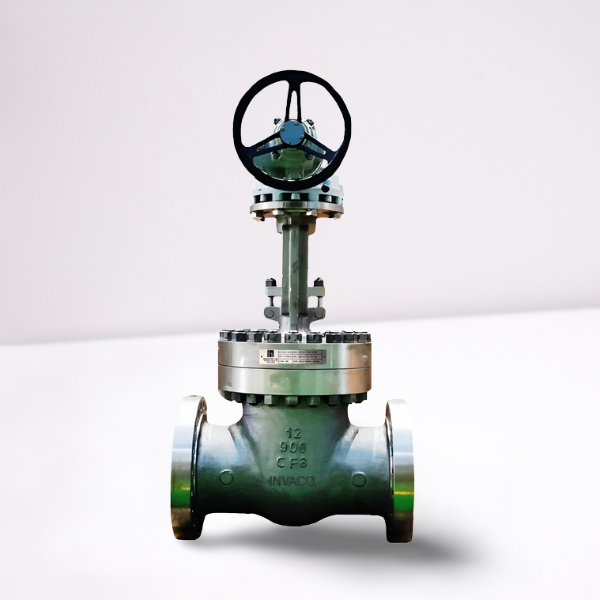

Cast Steel Gate Valve – Model 1000

Design Features

Size:

2” to 48″ (50mm to 1200mm)

Rating:

Class 150 to Class 1500

Features:

Vacuum Seal Arrangement
API 600 Trims
Extended Stem & Extended Bonnet
Satellite or Hard Face
Flanged, RTJ & Butt-Weld Ends

Operations:

Hand wheel, Gear & Actuated

Reference Standards

Design:

ASME B16.34, API 602, API 600

Face to Face :

ASME B16.10, EN 558

Testing:

API 598, BS -12266

Drilling:

ASME B16.5, EN 1092

Testing:

FCI70.2 CL-II, ISO 5208, API 598

But Weld:

ASME B16.25

Special :

NACE MR 01-75

NDE:

As Per Requirement
