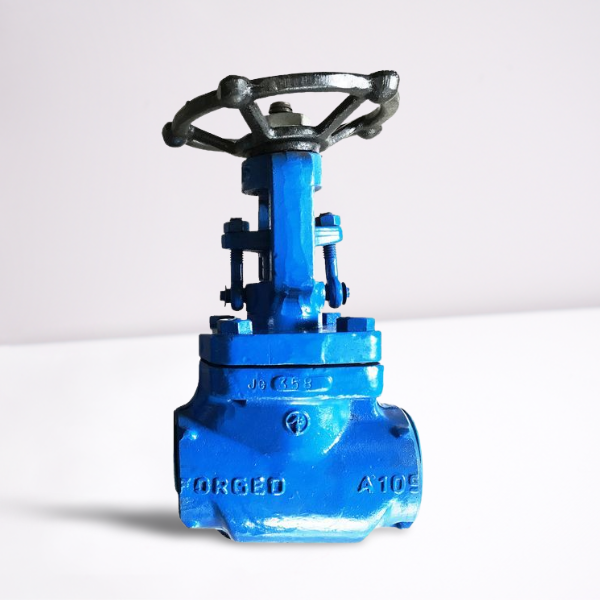

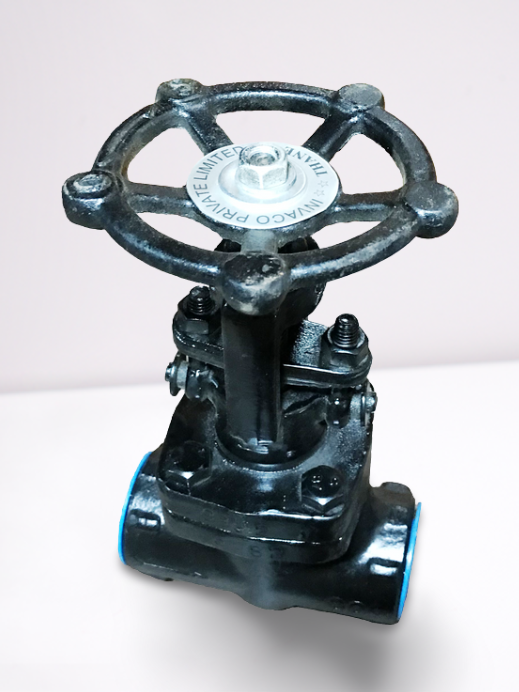

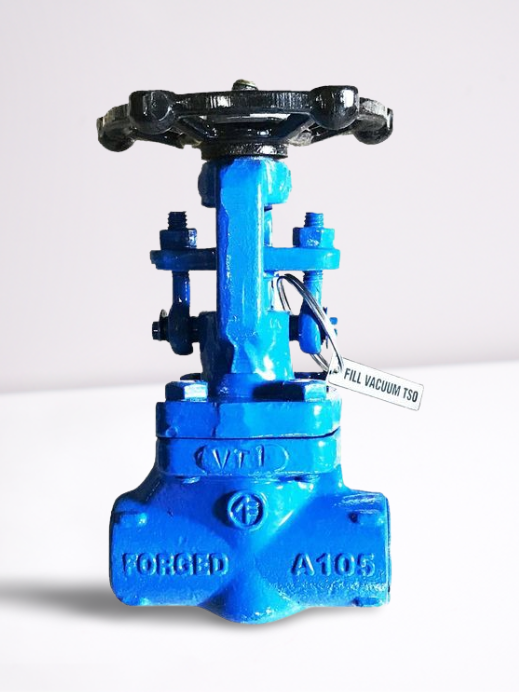

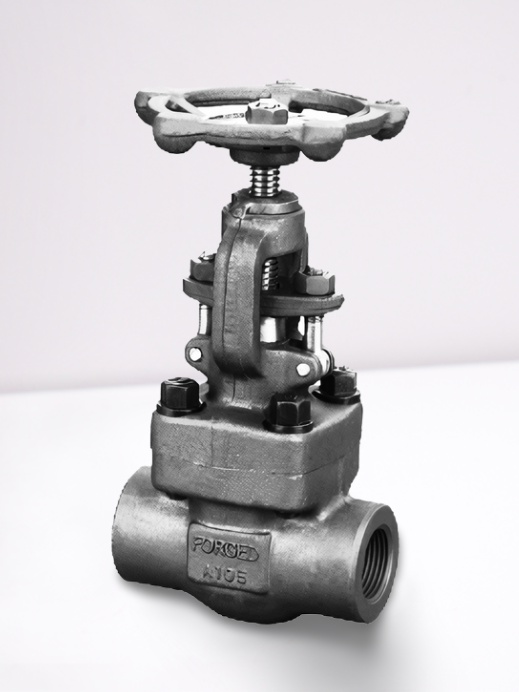

Gate Valve

Forged Gate Valve – Model 1300

Design Features

Size:

½” to 2” (15mm to 50mm)

Rating:

Class 800, Class 1500

Features:

Forged Body
API 600 Trims
Outside Yoke & Bolted Bonnet
Solid & Flexible Wedge
Socket, Screwed & Butt-weld Pup Piece

Operations:

Hand wheel

Reference Standards

Design:

ASME B16.34, API 602

Face to Face :

Manufacturing Standard

Testing:

API 598

Screwed:

ASME B1.20.1

But Weld:

ASME B16.25

Socket weld:

ASME B16.11

Special:

NACE MR 01-75
