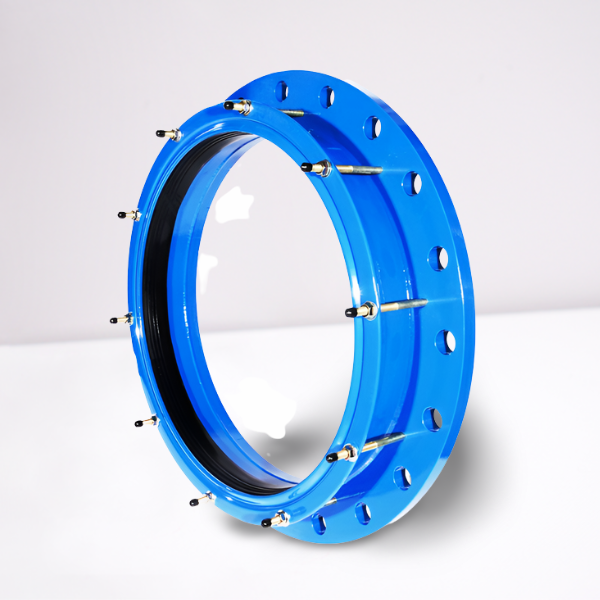

white-table-designify (25)

Flange Adaptor

Flange Adaptor – Model 8000

Design Features

Features:

Available for any size outer pipe diameter.
Leak tight connection
Allow 30 angular deflection
± 2.5mm expansion & contraction.
Epoxy Fusion Bonded painting / coating

Reference Standards

Design:

AWWA C219 / ASME B 16.34

Flange Drilling:

ASME B16.5 & B 16.47/ EN1092

Size :

2″ ( 50mm) – 160″ (4000mm)

Face to Face:

Maker’s Standard

Shell Design:

ASME B 16.34, ASME Sec VIII
