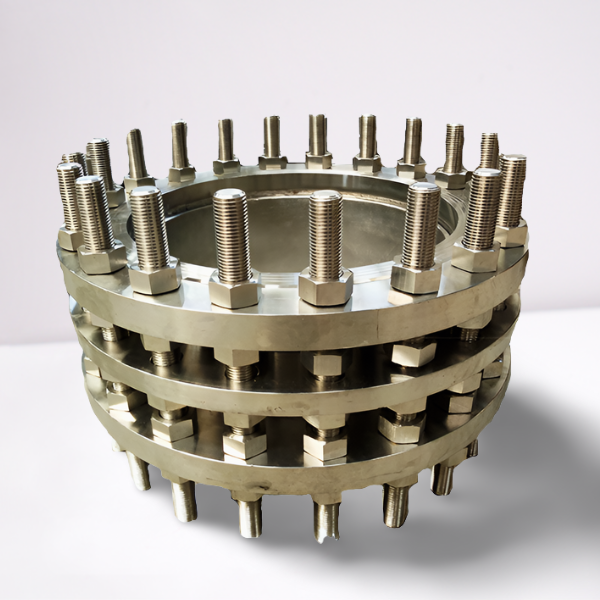

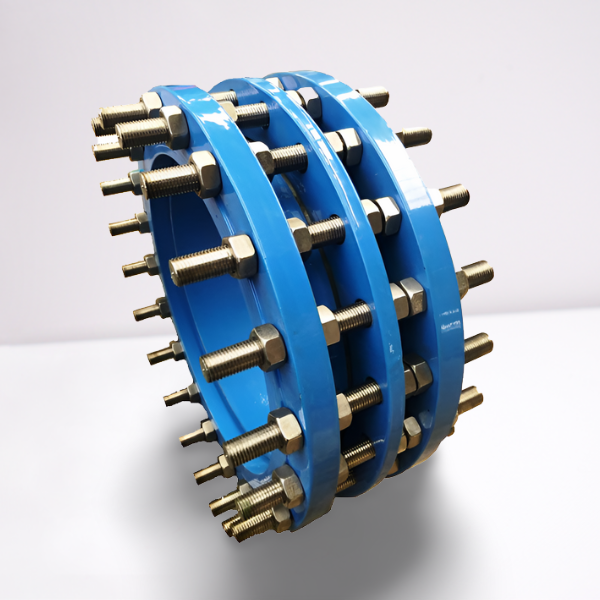

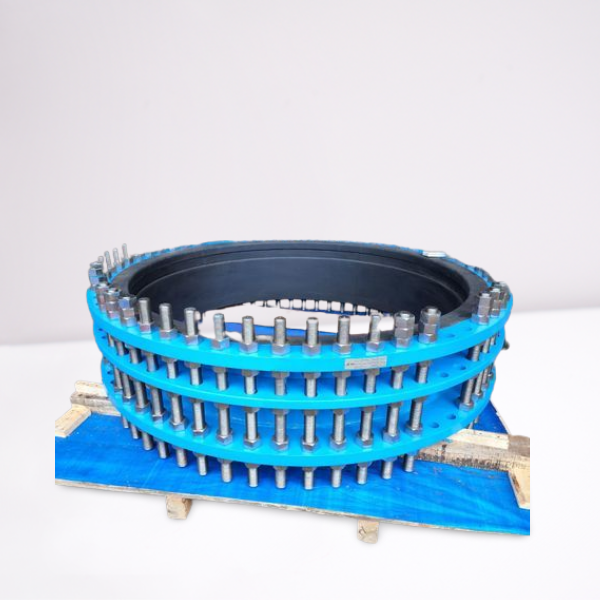

  • Dismantling Joints – Model 7000

    • Dismantling Joints – Model 7000

    Design Features

    Features:
    • Available for any size outer pipe diameter.
    • Minimum ±25 elongation capability
    • Cast or Fabricated Design
    • Epoxy Fusion Bonded painting / coating
    • Easy to assembled & disassemble in line.

    Reference Standards

    Design:

    AWWA C219 , ASME B 16.34

     Flange Drilling:

    ASME B16.5 & B 16.47, EN1092

     Size:

    4″ (100mm) – 160″ ( 4000mm)

     Face to Face:

    Maker’s Standard

     Shell Design:

    ASME B 16.34, ASME Sec VIII

     Rating:

    Class 150 – Class 1500
