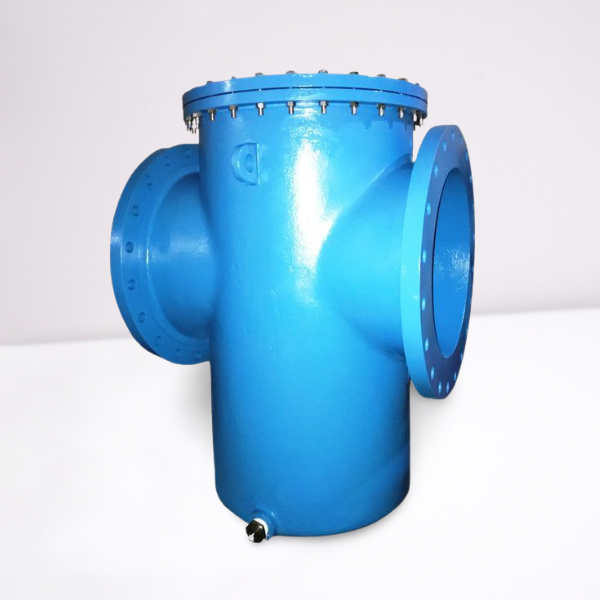

white-table-designify (15)

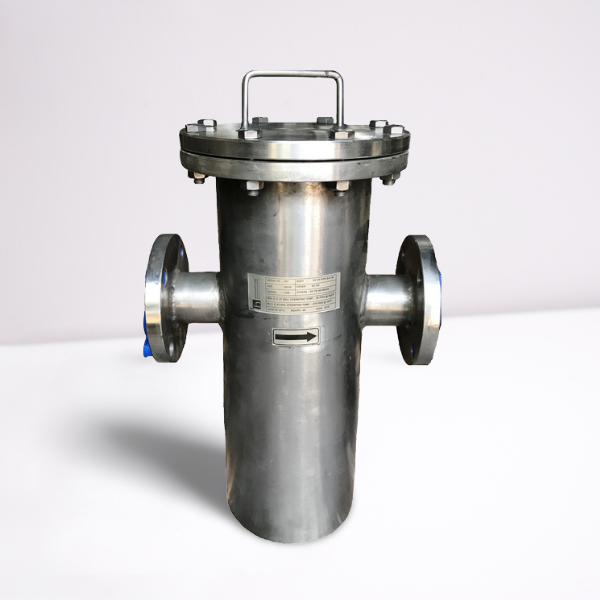

white-table-designify (17)

Strainers

Basket Strainers – Model 5300

Design Features

Size:

1/2” to 24” (15mm to 600mm)

Rating:

Class 150 – Class 1500

Features:

Flange RF, RTJ & Butt-Weld End
Bolted Cover & Drain Connection
Screwed & Socket End up 2″( 50mm)
Forged Body up to 2″(50mm)
40mesh / 60 mesh or as per requirements.
Casting / Fabricated Design

Reference Standards

Design:

ASME B16.34 / ASEM Sec VIII Div.1

Testing:

API 598

End to End Standards:

Maker’s Standard

Flange Drillings:

ASME B16.5 / EN 1029

Butt- Weld End :

ASME B 16.25

Scrwed End:

ASME B 1.20.1

Socket Weld :

ASME B 16.11

Material Testing:

NDE / NACE MR 01- 75
